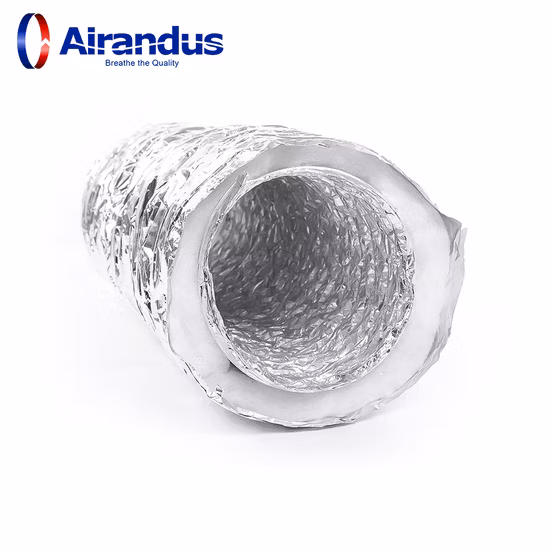

Polyester Insulated Aluminum Flexible Air Duct for HVAC

Basic Info

Specification	100mm*10m, 150mm*10m, 200mm*10m etc.
Trademark	PMAX
Origin	China
Production Capacity	10000000 Rolls/Year

Product Description

Jinan United Perfect Building Materials Corporation
is professional manufacturer of Flexible ducts and we have engaged in research, develop and produce flexible duct products for 10 years with rich experience.
We provide customers with green and eco-friendly bare flexible duct, insulated flexible duct, PVC flexible duct, semi rigid duct products etc. to create a better working and living environment for people.
1, Aluminum Bare Flexible Duct

Aluminum bare flexible duct (Aluminum non-insulated flexible duct) is specifically produced for low and medium pressure heating, cooling, ventilation, exhaust and air conditioning systems. Aluminum non-insulated flexible duct (ABD series) is produced from multi layer aluminum strengthened with high tension hard steel spring wire. It has high elasticity and flexibility.

Parameter	Alum bare duct (1 layer)	Alum bare duct (2 layers)
Diameter Range	3-48 inches (75mm-1200mm)	3-48 inches (75mm-1200mm)
Temp. Range	-30 ºC to 140 ºC	-30 ºC to 140 ºC
Max. Air Velocity	30 m/s	30 m/s
Working Pressure	2500 Pa	2500 Pa
Fire Resistance	Class B1 (GB8624)	Class B1 (GB8624)
Standard Length	10M, 6M, 5M, etc.	10M, 6M, 5M, etc.

2, Aluminum Insulated Flexible Duct

Aluminum Insulated Flexible Duct is made of aluminum/polyester lining with well balanced steel spiral internal duct+(16-32)kg/m3-25mm glass wool+ aluminum/polyester external duct.
It is suitable for the densely-populated area with high requirement of the environment area, such as school, hospital, laboratory, supermarket, office, stadium, theater etc.
2.1 Normal Insulated Flexible Ducts

Parameter	Alum Insulated duct (1 layer)	Alum Insulated duct (2 layers)
Inner Duct	1 layer alum foil	2 layers alum foil
Insulation Layer	16-32kg/m3-25mm glass wool	16-32kg/m3-25mm glass wool
Jacket Duct	PET foil + alum foil	PET foil + alum foil
Diameter Range	3-48 inches (75mm-1200mm)	3-48 inches (75mm-1200mm)
Temp. Range	-30 ºC to 140 ºC	-30 ºC to 140 ºC
Max. Air Velocity	30 m/s	30 m/s
Working Pressure	2500 Pa	2500 Pa
Fire Resistance	Class B1 (GB8624)	Class B1 (GB8624)
Standard Length	10M, 6M etc.	10M, 6M etc.

(Noise reduction flexible duct is also available according to requirement.)
2.2 Special Insulated Flexible Ducts
Square and rectangle insulated flexible duct is needed in some project, so does white fiber glass wool insulated flexible ducts. Below is the technical data:

Parameter	Rectangle insulated duct	White glasswool insulated duct
Inner Duct	1 layer alum foil	2 layers alum foil
Insulation Layer	16-32kg/m3-25mm glass wool	16-32kg/m3-25mm white glass wool
Jacket Duct	PET foil + alum foil	PET foil + alum foil
Diameter Range	>100mm*100mm	3-48 inches (75mm-1200mm)
Temp. Range	-30 ºC to 140 ºC	-30 ºC to 140 ºC
Max. Air Velocity	30 m/s	30 m/s
Working Pressure	2500 Pa	2500 Pa
Fire Resistance	Class B1 (GB8624)	Class B1 (GB8624)
Standard Length	10M, 6M etc.	10M, 6M etc.

3, Semi Rigid Duct
Semi Rigid Duct (Semi-flexible aluminum air duct) is flexible, extendable and highly reliable for low and medium pressure air conditioning, ventilation, boiler systems and chimney liners. It is very light with negligible extra load, easy to install and it is non-flammable.

Parameter	Semi rigid duct 1st generation	Semi rigid duct 2nd generation
Seal Way
Foil thickness	60micron to 120 micron	60micron to 120 micron
Diameter Range	80 mm-800mm	80-800
Temp. Range	-30 ºC to 250 ºC	-30 ºC to 250 ºC
Max. Air Velocity	25 m/s	25 m/s
Working Pressure	2000 Pa	2000 Pa
Fire Resistance	Non-combustible	Non-combustible
Standard Length	6M, 3M, 1.5m	6M, 3M, 1.5m
Corrugations	9; 4; Etc	7; 4; Etc
Extension rate	1:3	1:6

4, PVC duct and PVC Combined Duct

Parameter	PVC duct	Combined PVC duct
Inner Duct	1 layer PVC tape/2 layers PVC tape	1 layer alum foil+1 layer PVC tape
Diameter Range	3-48 inches (75mm-1200mm)	3-48 inches (75mm-1200mm)
Colors	Black, Gray, White, etc	Black, Gray, White, etc.
Temp. Range	-30 ºC to 150 ºC	-30 ºC to 150 ºC
Max. Air Velocity	30 m/s	30 m/s
Working Pressure	2500 Pa	2500 Pa
Fire Resistance	Class B1 (GB8624)	Class B1 (GB8624)
Standard Length	10M, 6M, etc.	10M, 6M, etc.
